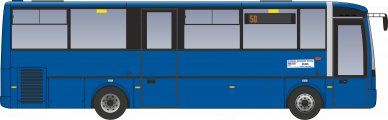

Irisbus Midway 9,7M

Fleet List

Set Type Fleet numbers Manufactured Into Service Withdrawn Quantity
1. Irisbus F15 Midway 9.7M 45 2005 2015 2017 1
2. Irisbus F15 Midway 9.7M 45II 2005 2017 2019 1
3. Irisbus F15 Midway 9.7M 45III 2006 2019 2021 1
Total 2005 – 2006   3

Technical Data

Length 9700 mm
Width 2500 mm
Height 3099 mm
Height of floor 767 mm
Wheelbase 4918 mm
Doors 2
Number of seats 35 + 1
Number of standing places 32
Design load 67 + 1
Weight of unloaded vehicle 8500 kg
Gross vehicle weight 13700 kg
Engine Iveco Tector 6 F4A, Euro 3, kvapalinou chladený naftový preplňovaný radový šesťvalec
Continuous power output 194 kW / 2500 rpm
Piston displacement 5880 cm3
Maximum torque 810 Nm / 1250 rpm
Maximum speed 100 km/h s obmedzovačom rýchlosti
Transmission Csepel ZF S6-890
6-stupňová, mechanická synchronizovaná
Steering wheel ZF 8095, s integrovaným hydraulickým posilňovačom
Axles predná: Iveco 5042
zadná: Meritor P 130 E, hnacia, s jednoduchou redukciou
Tyres 265/70 R 19,5

Photos

Vehicle catalogue

45

45II

45III

Legend and statistics

45withdrawn vehicle: 3 (100 %)
45IIfleet number 45 used 2 times by this type of vehicle
